AUX in Volvo HU-XXXX radio

This post is a description/tutorial on how I managed to hack the stereo (HU-650) in my Volvo V70 (2007) and successfully added my own AUX input. This hack should work with any HU-xxxx unit, "HU" meaning Head Unit (the stereo)


Why, why, why isn't there an AUX input on my car stereo from 2007?
Yes 2007 was before the big era of smartphones, but everyone owned a couple of dirt cheap mp3 players and  iPod was a big thing.

The HU that my car is fitted with has two super retro 8-pin DIN-connections on the back. One of which is for connecting a CD-changer "CD-CHGR" that you could have installed in the boot of the car - but who uses CDs these days?

It didn't take allot of research to find out there is already a product out there that lets you add an AUX to you HU-xxxx. The only drawback is that it sets you back $80 and most of all: It doesn't come with the awesome feeling that you get when you have hacked the stereo yourself.


It wasn't an easy thing finding information on how to hack the HU, but after allot of research I finally found some really good pages that made the hack easy peasy.

This is how it works:

  • The source knob on the HU lacks the ability to choose the CD-CHGR until you connect the CD-changer.
  • To trick the HU that you have a connected a CD-CHGR is not as easy as to shorten two of the pins on the DIN-connector, but it has to be done in code via a protocol named MELBUS
  • MELBUS is a protocol that utilizes a clock pin and a single bi directional data line to transfer the data between the units and the HU.
  • MELBUS uses three lines: Clock, Data and Busy see blue lines on picture below: ("Run" is just 12V from battery)
Picture source
  • In the picture above you can also see the Left and Right Audio signals that I tapped into for the AUX-input (Red).

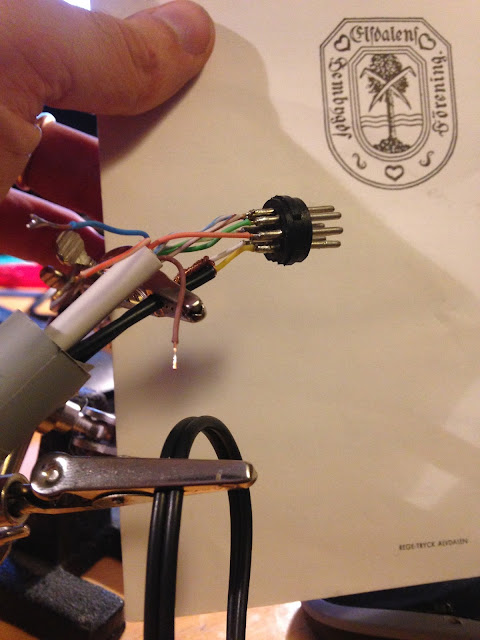

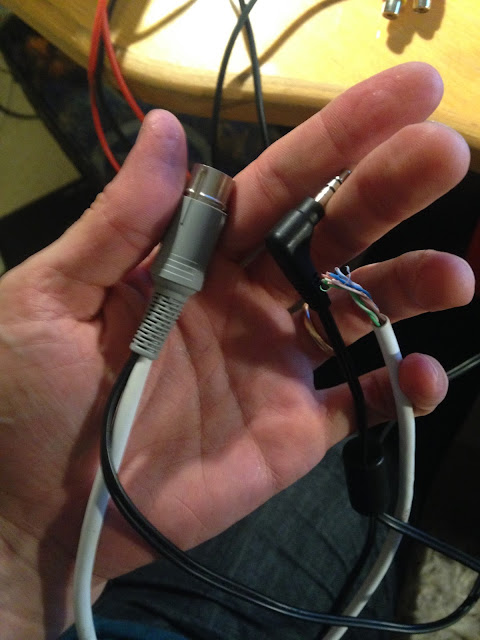

  • Focus on the left DIN-Socket (female) on the picture, that's the back female socket on the HU.


Total cost: ~$3.5

Hacking together some code

Edit 2016-11-04
A guy named Sebastian has modified my code and his version is more stable, and it also works on Mitsubishi HU and supports displaying track numbers! -Here's a link to his code!

Finally some programming!
I found this awesome write-up that contained almost everything I needed to fool the HU that the Arduino is a CD-CHGR. I will talk you through the process:
  1. Set BUSY to low for 1000 ms to make the HU run its initialization routine
    1. The HU init routine starts by sending three bytes: 0x07 0x1A 0xEE
    2. Then two bytes per optional connection device (~30 of them), the first byte being the predefined ID of the device (ex. CD-CHGR = 0x8E), followed by either an empty byte 0xFF, if the device is not connected, or the answering ID of the device (CD-CHGR = 0xEE)

      Example: External CD-CHGR: ID = 0x8E and its return ID is 0xEE
      Example: Internal CD-player: ID = 0x80 and its return ID is 0x86
      See list of predefined addresses and returns on bottom of this site.
    3. I.e. to simulate a connected CD-CHGR we have to:
      1. Trigger the HU init routine
      2. Wait until HU is sending out our ID (0x8E)
      3. Respond to that by sending back 0xEE
  2. Now the HU has registered that we have a CD-CHGR and it is now available through the source-knob, and will listen to the Left and Right Audio pins on the DIN-plug.
  3. Every time the car ignition is turned on, the HU will automatically run a secondary initialization routine:
    1. Starting by sending four bytes: 0x00 0x00 0x1C 0xED
    2. Then two bytes per already registered connection devices from the first init routine, the two bytes follows the same pattern as in the first init routine, first ID, than expecting the same answering byte as before.
    3. If the HU won't get an answer from the CD-CHGR, the device will be removed, and we have to set BUSY low again to call the first init-routine.
That's it for fooling the HU that the CD-CHGR is connected, now it's just a matter of connecting a device to the Left and Right Audio pins plus Ground. I soldered a network cable plus an 3.5 mm Audio cable to the pins of a DIN-plug.

Take care when reading the schematics above, it is the left socket on the picture you are interested in, that's the socket on the back of the HU-unit (female) and will be equal to the back of the DIN-plug.  (as you can see, I put the red cable on the "RUN" to use the 12V to power the arduino, White and yellow are Audio Left and Right)
As a bonus the 12V is only active when the ignition is turned on => no extra load on battery caused by the arduino when car is not used)

The code I wrote (below) is well documented and fairly easy to understand...

I had a hard time getting the function "SendByteToMelbus(uint8_t byteToSend)" to work.
It turned out that the Arduino functions: digitalWrite(MELBUS_DATA, HIGH); and LOW are too slow for this code, (MELBUS runs at 10-12MHz) and CLK had returned to high state before Databit was changed.

To solve this, I had to go back to the old AVR-GCC technique and use
PORTD |= (1<<MELBUS_DATA); and
in place of the Arduino functions.

I tried this setup without any form of ground-loop isolation and it works like a charm! Even when the engine is running and my smartphone is charging through the cigaret-socket the sound is crisp and no disturbing noise (alternator suppose to cause ground noise)

I guess one could buy an external Ground Loop Isolator ($5) to be on the safe side....

  1. Nice, where was this 5 years ago when I had a 2000 S80 and a sad cassette deck to aux converter?

  2. Great job!!!!
    Really nice

  3. You really helped me out there with some things I was struggling to do with my emulator (doing IO the AVR way + a typo in my CD-Changer address).
    Issues with your code are mostly the mixed use of Arduino and AVR pin numbers: For your Nano these seem to match, but on my Sparkfun Pro Micro (Clone), the numbers are off (i.e. Digital Pin 2 is PD0/INT0).

    One question though: You are supplying your Arduino via the MELBUS 12V run line - is that really safe?

    In case you're interested, my code is on github ( But it's way more bloated than yours, and probably still more broken ;-)

    1. Nice!
      Why should the 12V not be safe? (im not an arduino expert)
      Make sure you notify me if you succede in sending text to the HU (and get rid of the CD ERROR...)

  4. Hello
    I want to apply this to my car's HU (Citroen Xsara witch a VDO RD3 Head Unit)
    the difference is that my HU doesn't contain a 8-pin DIN connector, but instead, it has a different one as shown in this picture:
    My questions are:
    - is it possible to do the same work on my HU ?
    - if yes can you please help figure it out ?
    thank you

  5. Hi I was wondering if you could post a few more pictures of how you hid this and wired it? Thanks

  6. Hello,
    nice job! Tried to use your hack on another melbus device which is mitsu's product called w142 (PH3000). It has a 13-pin cd changer socket like those used in Volvo Nav units. Pinout is the same for melbus (pins 11-13) data and audio (pins 1-4) signals. Strange things happen though: the unit not only does not want to switch to cd changer, but also the display disappears and the switches on front panel of the unit do not work. Otherwise, the unit plays normally - with no cd it plays the radio and when i give it a cd it starts playback with no problems. I'll try to investigate further, there has to be a way to make your hack work on mistu's also! :)

    1. Hi,

      any progress with the w142? I have a similar mitsu radio which doesn't work with this hack either.

    2. Did you manage to get it working?

  7. where the RUN connection should be on arduino pinouts?Pin D3 - CLK
    Pin D4 - Data Pin D5 - Busy and RUN?

  8. Excellent write-up! Btw. the ground loop isolator is not needed, because the line input of the HU is a so called "quasi-differential" input, i.e. it senses any noise on the ground line (pin 2) and subtracts it from the L/R signal via an operational amplifier.

  9. I am using your code to sniff the melbus communication between a mistubishi HU and its seperate display unit, which is also the board computer of the car. Initially, I got very unstable data. As it turned out, this was due to a race condition between data and clock. The problem was resolved by changing the edge where the clock interrupt is triggered from the rising to the falling edge, because this allows the data line to settle after it changes at the rising edge.

  10. Tried this but cannot seem to get it to work. It doesnt add CD CHGR as a switchable input any idea why? It does however prevent the CD player built in to work

  11. There is a bug in SendByteToMelbus(). This function needs to release the data line between two transmissions. Take a look at the waveforms at . If the data line remains low during two transmissions, the HU assumes that a slave requests to become bus master and stops the clock. That's the reason, why you can't respond to the track info request. Btw. there should be also a timeout while waiting for the clock edges.

    1. Hi! Could you please share your code with the modifications? Much appreciated! Thanks!
      How stable is your solution? What type of arduino do you use?

  12. Im not very good when it comes to coding but would this explain for mine not connecting 25% of the time i turn the radio on?

  13. Hello. I have tried to get this solution to work for a few days now on my arduino uno. Is there any obvious reason why this code shouldn't work straight on UNO?

    1. I am running this code on UNO. I had to do a number of changes to the code to get it running. However, none of these changes was due to the different Arduino platform, but due to a different HU (Mitsubishi, not Volvo) and due to enhancements such as displaying track number and run time. Some changes also might have been necessary due to bugs in the original code, but I am not sure about this, because I do not have a Volvo HU to test it. so it might be that the melbus protocol is just implemented slightly different on those HUs. For example, I had to change the interrupt edge mode from RISING to FALLING. And for text display I had to change SendByteToMelbus() such that it releases the data line between two consecutive transmissions. After all my implementation is still not perfectly reliable, because from time to time the bus gets reset by the HU for no obvious reason.

    2. I was able to improve stability by adding "EIFR |= (1 << INTF1);" at the end of the interrupt service routine to avoid spurious interrupts triggered by noise. But stability is still not perfect. Might need some RC-Filtering or at least 100 series resistance in clock, data and busy lines. Also important is that all melbus lines are open collector lines with pull-up resistors (found this info in service manual for mitsu car radio). You can simulate open collector output by clearing the relevant DDRD bit during high level output. This is important because HU will detect bus conflict otherwise.

    3. is there a chance you would be wiling to upload the updated code to Github or email it to me? i would be willing to test it on my HU-611 (volvo) because with the supplied code it actually works 1/20 i start the car.

    4. sure, just post your email address.

    5. Hi guys! I love how you guys help each other out to get the code to work on different modes - good job!
      I would appreciate if you posted a link to your code on github or any other source instead of emailing each other, so that all of us can learn from your upgraded code!
      Keep up the good job!

    6. Hi Kalle, I don't know how to setup Github. So, would you be willing to put the modified code in this blog instead? Atm I don't have much time to work on it, but my long term goal is to control a FS Verona DAB+ module and a BT APTX A2DP/handsfree module from my Mitsu HU via this interface. So if someone else is interested in this as well or wants to adapt it for Volvo HUs, it could be worth to setup a Github in the long term.

    7. sure, email me (kalle.lofgren(at) the code and i'll put it on my Github next to this code!

    8. Oooh, so the modified code by Sebastian (linked in the post) can actually send data?
      I can't wait until I have some free time to take a proper look at it and add it to my github project :)

    9. Jag har en komplett renault -enhet.
      den har en fyrkantig kontakt om du kan hjälpa mig att ansluta den till HU 605

  14. Karl,
    Great job!!! I've just made fast try and everything works perfect!

    Does anyone think about bluetooth and how to use "previous" and "next" buttons on radio?

  15. Thank you for posting this great information Karl!

    I plan to use this on an Alpine TDM 7544 head unit. I wondered though, is the MELBUS you mentioned the same protocol as the Alpine M Bus?

    Thanks again!

  16. Have you recieved the code through email? I would still like to test it.

    1. Can confirm 100% that this works on a hu-611 with an iphone 6. Thanks a bunch. It may help others to also embed this as an alternative on your post

    2. Awesome! Thank you so much Karl, the modified code worked no problem on my Volvo V40 HU-655. I was a little confused by the lack of a free DIN socket in the back of my HU until I realised that one of the DIN cables is an unused factory installed loom that runs to the back of the car ready for an aftermarket CD changer to be installed. I was also wondering if I would still be able to use the radio, tape, CD as there is no on/off for the Arduino.. but not to worry, all of these still worked and the CD button on the HU cycles between the Arduino Aux-In and the HU CD player. Many thanks again.

  17. Maybe someone found out how to improve code, that the radio would show song name?

    1. It is possible to do that, but you need to emulate a MD changer instead of a CD changer.

  18. Maybe somebody knows the song name the download procedure in MD mode?

    1. Ask this guy:

      He has assembler source code for a PIC-based USB-melbus interface that is able to emulate a MD changer and display song names on Volvo HUs.

    2. Thanks for the link, but the man does not answer.
      I need for the project(, and the opportunity to explore, for example imiv no.

    3. post your email address, maybe I can help you...

    4. First of all, Huge thank you Kalle for sharing your code!! This is working flawless with my HU 555 and UNO.
      Working track ID's would be a great addition. Here is the code for MD modus:
      Unit ID Main Response Master Mode ID HU
      MDC(External) D8 DE DF D8 or D9
      CDC(External) E8 EE EF E8 or E9
      more info here:
      If anyone has made any progress, please share.

  19. I tried the modified code on a Mitsubishi W142 HU but I can´t get it to work.
    Has anyone else tried it on a Mitsubishi W142 HU?

  20. Hi guys,

    I have same setup (2007 volvo with HU-650), but using UNO. Unfortunately I can't get pass connection phase. Tried both and Karl's and Sebastian's codes, but still can't receive any data from HU. Any hints where to look for a problem would be much appreciated

  21. Hi Darius
    I myself also use a UNO with a HU-555, Karl's code should work without issues.
    Check your connections with a multimeter, make sure that's not the problem.
    Maybe this helps (see link) the PIN layout is identical as shown above.

    1. Thanks a lot for the reply. I will recheck the connections again. I really would like to have it working, it is at the moment breaking the whole project.

    2. Thanks Chip again, because of you I was able to identify my two rookie mistakes - (1) mixed wires, (2) didn't bother to connect ground and hot from HU to arduino, just powered it from USB.

      And thanks Karl and Sebastian for codes. Works good, now the aim is to find how to manipulate all the buttons

    3. Hello ,Chip_trauma can you help me about my Hu-555 how to make auxiliar please ?

  22. Hi!

    Code provided by Sebastian works like a charm on the first try.
    But I have now another problem, when I try to simulate, that UNO is MD-Changer (not cd-changer), then code just doesn't work.
    What I have changed is that all E8s I changed to D8, EE to DE, EF to DF and all E9 to D9.
    Does anybody know what current issue is?

    1. post your email address, I send you Arduino file ...

  23. hello does any had picture of wires with color from DIN 8P to arduino or how conect the wires from DIN to arudino. Thanks for all :)

  24. Hey can you make same video how to connect all bicose i not understed how connet cable to adrino

  25. If you read the code and refer to the picture of the plug you can figure out the correct way to connect it plus read a few comments

  26. Hey, awesome project! I have been looking for something like this for a very long time.
    Problem is, I keep on getting inconsistent data readings. I am starting to believe that it is something regarding the wiring, or something with the logic levels (mismatch voltage between HU and my arduino). Currently I'm connected to the DATA, CLK and BUSY lines directly. Should I be using a resistor or capacitor and if so, what would the wiring look like?
    Thank you so much!

  27. Can also confirm modded code works on a HU-655

  28. Hi! I ported this code to SMT32 which works much better than Arduino. Check my video, link bellow. I speak czech there, but you get the idea. If you are interested, let me know in comments under video. :)


  29. This comment has been removed by the author.

  30. I'll be very happy if you send me latest version of code for Volvo HU into Thank you very much

  31. does anyone run this project on HU405? thx for anwser

  32. Great project, if anyone has any insight on how to send the ID3 tags in MD changer mode that would be great. I'm working on a project that will take the text info from a bluetooth connection and send it over to the HU.

    1. hello, I'm interesed of you project. I want to learn how to write simple "AUX IN" on the HU803 LCD

  33. I'm having some trouble. I have the HU working well (HU-801 Volvo S80) in CD CHGR mode but it will always fail after a short while. The CD and Track numbers will start to change sporadically and eventually I get a "CD LOAD CARTRIDGE" message that stays in place. When this is here, I cannot adjust volume (but the music still plays from AUX). After cycling the key, the CD CHGR mode will disappear until eventually it will pop back up (could take many key cycles and days later). Any thoughts? Code problem? Connection issue?

  34. Someone with MD changer source code that can change text on HU display? Please share!

  35. This comment has been removed by the author.

  36. Hello , for volvo S40 2002 Hu-555 to make aux is possible? SOME DIAGRAM ?

  37. Hi Karl
    I have a Volvo HU803 and want to make AUX input like you.
    I am using Arduino nano 328P with Arduino 1.6.13.
    I copied your code into a new file.
    When I try verifying the code and I get mistakes. (ex redefintion 'void setup()' and so on.
    Any advice?

    Kind Regards

    Over and out

  38. Hi Karl,
    I have been meaning to build one of these for ages. All the bits arrived some time ago, but no time to do anything about it. I stole some time away from the family over our Christmas holidays, programmed up the Arduino and built up the connectors. Actually, I built an extension lead from the back of the HU 803 to just behind the removable panel at the side of the footwell, to enable easy connection without having to remove all the climate control and radio system. After a little bit of fiddling, lo and behold, IT WORKS!!! I am so grateful to you for sharing all this info. Hope you and yours have an excellent 2017 and beyond.
    Doc BJ

  39. Hi, thanks for the guide. I have a small problem. I have done everything , but when I connect my phone to the aux, sound only comes out of the front speakers, and the back speakers stay silent. Any idea how to fix this ? B.T.W My head unit is a HU-555

  40. Hi, I posted here the other day, but either it failed, or it was removed. Let's try again -
    I just wanted to give thanks to everybody that shared their knowledge about MELBUS and made the AUX input possible. I built one myself and used Karl's code and modified it a bit. I put it on github if anyone is interested. It supports showing the cd# and track# and you can change track by pressing the buttons on the steering wheel/radio. It can also trigger MASTER mode, but I didn't know what to do with that. There is also a simple schematics of how to connect it to the arduino.
    Hope that you don't mind using parts of your code Karl!
    Here is the link:

    1. By "changing the track" I mean changing what's displayed on the HU. I hope to get it to really change songs when I get my bluetooth module. Also, I made some (small) progress on the MELBUS protocol and it's in the code comments.

    2. Hey!
      Thanks for awesome instructions!

      What is the type of the transtistor you used in the connections?
      How can the voltage drop 3v from 5v if you use blue leds, i mean doesnt blue leds take about 3 volts.

  41. Hello! Maybe someone knows how to send a text to the HU in SAT mode?

  42. Maybe someone has a log's Imiv SAT?

  43. Thanks for this great build..
    I used an Pro Micro instead.

    i only had to change the line
    const uint8_t MELBUS_CLOCKBIT_INT = 1; //interrupt numer (INT1) on DDR3
    const uint8_t MELBUS_CLOCKBIT_INT = 0;
    as the pro micro does not adress interupt 1 to pin 3

  44. So it is safe to connect the arduino device correctly?
    On which voltage level does MELBUS work?

  45. Data, clock and busy lines are 5v which is safe on an arduino (5v versions, there is 3.3v versions also). The run line is 12v which can be fed into vin on the arduino. See my note on github though about avoiding back powering your arduino through the 5v lines. /Thomas

  46. Hi, thanks for the post!

    I have a problem with project, i can trick HU and get that message on the radio screen "cd error", but i have no sound!

    Any suggestion?

  47. thank you all for information!
    your code Works great with head units with serial numbers 8xxxxx.
    However, it does not work with older head units. Internal CD player and arduino somehow interfere and then nothing works.
    This code Works with older head units with serial numbers 9xxxxxx.
    Tested on HU-601

  48. I see where the run 12v would connect to the vin on the arduino, but where does the gnd from the arduino go?

  49. Does latest code work with Mitsubishi w142 hu?

  50. hello karl,

    i want asking for where we soldier aux R/L/Ground from mp3 speaker unit
    and where is i must soldier for Dacr/Lacr/Ground from mp3 speaker unit

    My HU is HU-601

  51. Hi!

    First, thanks for the great introduction!

    Unfortunately i dont know how i connect the gnd from the Din Socket to my Arduino.
    Which pin at the Din socket should i use?
    Can anyone help me?

    Thank you!

  52. Thanks For Sharing information... For the best prices & service in New Zealand. Car audio Sales, repairs & mobile car audio installation of all car. Contact Us:- 33384653

  53. Any info on MD-changer/text info or arduino files, email me at

  54. thanks karl. i make this because of your code and combination with tablet can make cheap for me.

  55. Great post, excellent information, thanks for sharing..!! Salvage cars

  56. Karl,
    After the ENUM message from the HU, it will request the cartridge info with the 3 byte INFO message. You need to reply with the the six info bytes. After that the HU will send the 5 byte PLAY massage to the CD-CHGR that requires the 9 byte reply. Only with this sequence you can make the "CD ERROR" go away. CD and track number will be displayed as set in the 9 byte PLAY reply. I use an RS232 link between this gateway controller and the MP3 player to transfer these numbers from the player to gateway controller. Hence they will be automatically forwarded to the HU and the track and CD control buttons on th HU and steering wheel start making sense.
    Did anyone find out how to transfer text to the HU (track artist, title...)? It should be possible, the RDS is doing it.

  57. Hello, I have wired this up and it is working fine, very clear audio. Only issue is that with the ignition off there is still power getting to the board. The led is dimmer so probably lower voltage. It's a hu605 head unit. Is the a permanent feed to the changer, for memory or something? I'm not keen for power to be on all the time, I can put a switch in no problem but would prefer for it to be self contained. Any clues?

    1. Also, thanks for all the info! Do you think taking a feed from the accessory pin of the iso connector would be OK?

  58. Just to share my experience - my S60 is equipped with RTI system, which is hooked up to HU - exactly to the same DIN8 socket which is to be used in the described "hack". If one wants to have AUX with RTI still operative then using DIN8 socket of the HU's back is not a good idea.
    But installation of the Karl's system proved to be even easier - RTI module (in the trunk) has DIN13 socket for "daisy chaining" of CD Changer and all one has to do is just make the cable with this DIN13 instead of DIN8. And it's much easier (for me- at least) to plug this cable into the RTI back side socket. Getting there - instead of taking out climate and HU units - is rather simple thing.
    Of course, one needs to pull the audio cable from the trunk to the central console or tunnel compartment, or - under the doors' mats - this may be an issue (not that big one for me). If a car doesn't have RTI but RTI-prepared (all wiring/harnesses are in place) then the whole thing is even more simple.
    The pinout of DIN13 comes from the mentioned
    Clock 12
    Audio GND 1
    RUN 10
    Data 13
    Busy 11
    Audio Left 2
    Audio Right 4
    Arduino GND either 1 or plug "shell" (or both)

  59. Still the same question:
    Did anyone find out how to transfer text to the HU (track artist, title...)?
    If yes, please contact me on



  60. Hello,

    I have very strange problem here, have tried all the codes found in this thread, all of them does the same. If im using AC-DC 12V power supply at home to power up my Volvo HU-603 everything works just fine every time i turn in on, but if i connect my HU in the car everything messes up i can't switch to cd-chngr, even CD disappears, i don't even start the car... If im switching ignition key on-off-on several times, i did get one time when cd-chngr lighted up, but one more time off-on and its gone..
    I'm using arduino nano + DC-DC 5V converter to power it up from car battery.
    Any suggestions what could be wrong?

    1. I'm having the same problem, It is the arduino board that is vault.
      Try us another arduino mini and reload the codes, it should work

  61. Hello! Found this and thought I'd build it for my Volvo hu-615. Looking at the schematics, I'm a little confused. There are 2 grounds, it seems: Pin 2 (audio cable screen) and the Din 8 shield ground. Which connects where?

    That is,
    what connects to the Arduino Mini Ground pin?
    and what connects to the audio jack ground?

    This is what I've figured out so far:

    on Arduino mini:
    Pin D3 = din pin 1 (clock)
    Pin D4 = din pin pin 4 (data)
    Pin D5 = din pin 5 (busy)
    VIN = din pin 3 (run/12v)
    G = ??? what connects to the Arduino mini ground pin? Din pin 2 (audio cable screen) or din ground shield?

    on audio jack:
    Left audio (tip) = din pin 6
    Right audio (ring) = din pin 7
    Ground (sleeve) = which? Din pin 2 (audio cable screen) or din ground shield?

    Thanks for your thoughts.

    1. Did you figure out a soloution? I am in the process of buildning this myself and have the same question. The most reasonable to me is if you connect the audio ground to din pin 2 and the arduino ground to the ground shield. But I could be wrong.

    2. I used DIN Pin 2 as the audio ground and it worked. I've not yet gotten the radio +/- to power the arduino, I'm just using USB power.

  62. Hi has any one got a aux mod for the sc radios from volvo email me thank you

  63. Blog is very helpful.Looking forward to your next post.Thank You Used Volvo S60 Cars For Sale

  64. did it, working great on s80 2000 hu-601

    just pluged into 13 pin and i have both rti and cd changer with bluetooth

    thanks for hard work with figuring out how it works and sharing

  65. I think I solved the "CD ERROR" problem.
    I put a mini buck regulator between the ACC and the Arduino and the "CD ERROR" went away.
    The voltage in a car varies between 12-14.5 volts but the Arduino is specified for Max 12volts.
    I set the regulator to 10 Volts sins it is very stable 2 volts below Vin.
    I also added a CSR8645 to the project to get full Bluetooth functionality.
    Great projects! Thanks!

    Btw. If anyone would be kind to share the code for MD changer instead of a CD changer I would be very grateful.
    I tried to hack the code but I'm not good enough at C.

  66. Thank you very much i made a case cable with 3d printer.

  67. MestiQQ Adalah perusahaan judi online KELAS DUNIA ber-grade A

    Sudah saatnya Pencinta POKER Bergabung bersama kami dengan Pemain - Pemain RATING-A

    Hanya dengan MINIMAL DEPOSIT RP. 10.000 anda sudah bisa bermain di semua games.

    Kini terdapat 8 permainan yang hanya menggunakan 1 User ID & hanya dalam 1 website.


    100% tanpa robot, 100% Player VS Player.
    Live Chat Online 24 Jam Dan Dilayani Oleh Customer Service Profesional.

    Segera DAFTARKAN diri anda dan Coba keberuntungan anda bersama MestiQQ
    ** Register/Pendaftaran : WWW-MestiQQ-POKER
    Jadilah Milionare Sekarang Juga Hanya di MestiQQ ^^

    Untuk Informasi lebih lanjut silahkan Hubungi Customer Service kami :
    BBM : 2C2EC3A3
    WA: +855966531715
    SKYPE :

  68. I'm trying to build this for my SC-816 head unit (2000 Volvo S70), which has a mini DIN jack for the CD changer. Here's a pic:

    Oddly I can't find a pinout for the mini DIN. I don't imagine anyone has any ideas?

    And I can't even find an adaptor for DIN to mini DIN.

    1. If I remember correctly you can activate aux input by feeding a signal through AMP DIN and pressing TAPE button (A<->B side) 2 or 3 times. It worked on SC-805 and SC-802. It works until you press Eject or disconnect the battery.

      Here's a AMP DIN pinout

      Input activation video on YT

  69. does anyone know if this works on a HU-803 ?

  70. Cari Situs Online Terpercaya
    Ini Recommend Situs Online Dari Berbagai Jenis Permainan Games Menarik, Slot, Togel, Casino, Poker, DominoQiuQiu, BandarQ, Taruhan Bola Dan Masih Banyak lainnya Lagi Yang Seru Loh

    * Bonus Deposit Sportbook 10% (Setiap Harinya)
    * Bonus Deposit Sabung Ayam 5% (Setiap Harinya)
    * Bonus Deposit Bola Tangkas 10% (Setiap Harinya)
    * Bonus Cashback Casino Online 0.7%
    * Bonus Cashback Sabung Ayam 5% Up To 10%
    * Bonus Cashback Sportbook 5% Up To 15%
    * Bonus Cashback Slot Games 5%

    Promo Togel
    * Discount Pasaran Togel Terbesar
    * Bonus Deposit 10% (Setiap Harinya)
    * Bonus Cashback Setiap Minggu 5% Up 15%
    * Bonus Turn Over Bulanan

    Promo DominoQiuQiu Dan Poker Online
    * Bonus Rollingan 0.5% Setiap Minggunya
    * Bonus Refferal 20%

    Kunjungi Kami Di :

    Agen Judi Online
    Daftar Judi Online


    Proses Depo 1 MENIT dan WD kurang lebih 3 MENIT
    Minimal Deposit IDR 20.000
    Minimal WD IDR 50.000

    * BONUS DEPOSIT 100% & 20%

    WA : +85569568546

    Link Alternatif Kami:

  72. Does this code and pinout work on the CS-805 in my V40 from Alpine?

  73. Nice Blog, Thanx For Sharing. We Rachna Fasteners is an IATF 16949:2016 certified & CE Approved Fasteners manufacturer As Per EN-15048 Part-1 and 2 from TUV Nord leading manufacturer of high tensile hot and cold forged fasteners in India. EN 14399 manufacturer Supplier in India, Automotive fasteners, superior fasteners.

    Fastener Manufacturer
    Fastener Manufacturer Website
    Fastener Manufacturer pvt ltd
    Nut Bolt Manufacturer Ludhiana
    Auto Fasteners Ludhiana
    High Tensile Nuts And Bolts India
    Automotive Bolts And Nuts Suppliers India
    M24 cold forged bolts
    M24 cold forge Nuts
    DIN 603

  74. Thanks for sharing this quality information with us. I really enjoyed reading. Visit to my blog Situs web judi terpercaya indonesia

  75. Thanks for the description it works great with my HU-555. Nice clear sound ;)
    Powered the arduino nano with the +12v run signal. Arduino GND and mini jack GND connected to DIN plug GND.
    Next step will be replacing the mini jack with a bluetooth receiver

  76. [url=]unogoal[/url]
    [url=]uno goal[/url]
    [url=]Link Alternatif unogoal[/url]
    [url=]Bonus unogoal[/url]
    [url=]Referral unogoal[/url]
    [url=]APK unogoal[/url]
    [url=]Download unogoal[/url]
    [url=]Login unogoal[/url]
    [url=]Android unogoal[/url]

  77. This comment has been removed by the author.

  78. I think this is one of the most significant information for me.
    And i’m glad reading your article. But want to remark on some general things, The site style
    is ideal, the articles is really nice : D. Good job, cheers

    Judi Togel
    Agen Togel Terpercaya
    Bandar Togel Terpercaya
    Bandar Togel Singapura
    Agen Sabung Ayam SV388
    Agen Slot Online Deposit Pulsa
    Agen Slot Online Terpercaya


  79. I think this is one of the most significant information for me.
    And i’m glad reading your article. But want to remark on some general things, The site style
    is ideal, the articles is really nice : D. Good job, cheers
    Agen Slot Online

  80. Автору респект. Собирал и все работает. Правда не проверил с развязывающим трансформатором, тогда еще не купил.
    Даже поэкспериментировал с разными входами. Все вроде работает.

    Интересная тема по мелбас..

  81. Проверял. Все работает.

  82. hello friend, I'm very interested in your article, it looks like you also have to read my article on the site

  83. hello bro, visit our site to get the latest and most trusted information on online bookies. This info is very important so that you don't be fooled, bro.
    <a href="”>GBET8</a>

  84. hello, we from marketing want to offer a free chip bonus and a free mix parlay, click here for more information
    personalized gifts for mom
    custom gifts for dad
    personalized new baby gifts

  85. Car interiors should also invest in ventilation to keep cars cool. Click the link

  86. Spesial Promo Khusus Member Setia Di Situs CrownQQ
    Yuk Buruan Daftar Dan Mainkan 9 Game Berkualitas Hanya Di Situs CrownQQ
    Agen BandarQ Terbesar Dan Terpercaya Di indonesia
    Rasakan Sensasi serunya bermain di CrownQQ, Agen BandarQ Yang 100% Gampang Menang
    Games Yang di Hadirkan CrownQQ :
    * Poker Online
    * BandarQ
    * Domino99
    * Bandar Sakong
    * Sakong
    * Bandar66
    * AduQ
    * Sakong
    * Perang Baccarat (New Game)

    Promo Yang Hadir Di CrownQQ Saat ini Adalah :
    => Bonus Refferal 20%
    => Bonus Turn Over 0,5%
    => Minimal Depo 20.000
    => Minimal WD 20.000
    => 100% Member Asli
    => Pelayanan DP & WD 24 jam
    => Livechat Kami 24 Jam Online
    => Bisa Dimainkan Di Hp Android
    => Di Layani Dengan 5 Bank Terbaik

    << Contact_us >>
    WHATSAPP : +6287771354805
    WHATSAPP2: +855889110473
    LINE : CS_CrownQQ
    TELEGRAM : +855882357563

    Link Resmi CrownQQ:



  87. Very nice article.I hope you will publish again such type of post.
    Corporate gifts | Promotional gifts singapore

  88. ketika bermain dalam link dipastikan anda harus bermain dalam bandarqq dimana anda bisa mendapatkan kemenangan dengan mudah ketika bermain.

  89. GARUDAGAME merupakan situs judi online terbaik yang sudah memiliki banyak peminat yang berasal dari seluruh Indonesia.
    Dengan minimal deposit hanya 10.000 Anda sudah dapat bermain semua permainan yang sudah kami sediakan di GARUDAGAME diantaranya live casino online, slot online, tembak ikan, poker online, tangkasnet dan judi bola online.
    Selain itu anda tidak perlu takut Jika Anda menang dalam jumlah berapapun pasti GARUDAGAME bayar 100% secara Full.
    slot online
    slot online
    slot online

  90. Nice Post. Thank you for posting such information. AUX Cable

  91. Jag har en komplett renault -enhet.
    den har en fyrkantig kontakt om du kan hjälpa mig att ansluta den till HU 605

  92. im doing a project right know for my sc-900 im going to install a bluetooth adapter and following this guide. my question is if the code you have writing work for my stereo ?

    best regards Robin Solberg

  93. I would like a photo of how to solder it with an arduino. I can't figure out where to insert the wire into the arduino.
